  • High frequency Online Transformerless UPS LI-RW(1-20KVA)
  • High frequency Online Transformerless UPS LI-RW(1-20KVA)
Product name:

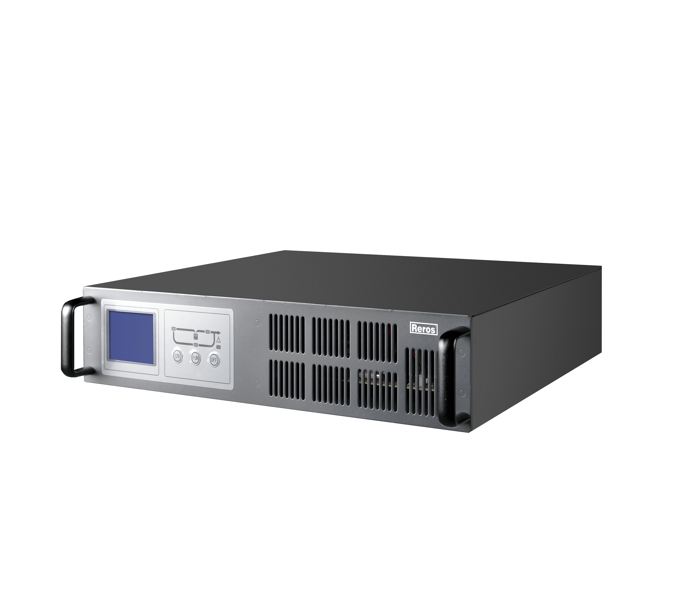

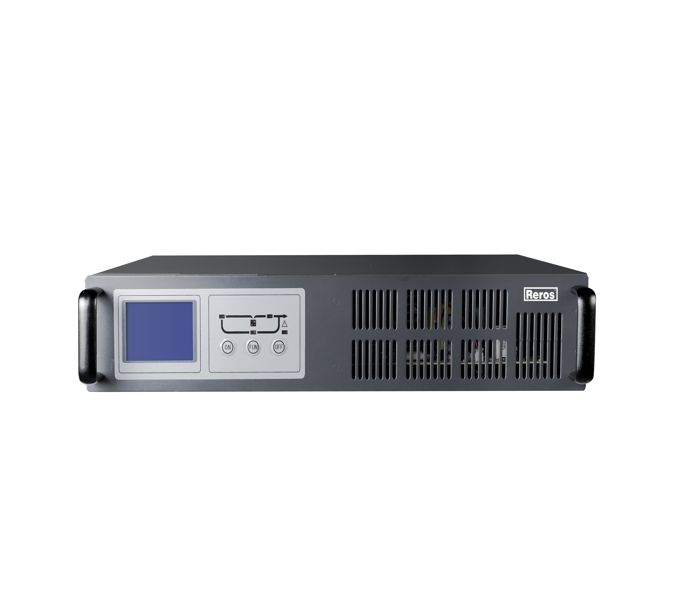

High frequency Online Transformerless UPS LI-RW(1-20KVA)

Share

Product parameters

Li-UPS RW series is based on rack-mount UPS combined with lithium batteries. It is ideal for data center, IT device and telecommunication, etc. Compared with lead acid battery, it have many advantages, such as longer cycling lifetime, smaller size, better environmental protection and high reliability.



Main feature

●Pure sine wave output

●Advanced digital control technology

●Intelligent Lithium battery monitoring management system

●Special lithium charger(optional)

●With function of self-diagnosis



Application

●Data center

●Mobile Telecom system

●IT device

●Precision instrumental


ModelLi-RW1KVALi-RW2KVALi-RW3KVA
Input
Voltage(Vac)120-288
Frequency(HZ)45-66 automatically select synchronization range according to power frequency
Output
Power factor1.0
Voltage(Vac)220/230/240Vac
Frequency(HZ)50/60±0.05(battery mode)
Transfer time0ms
WaveformPure sine wave
Voltage(Vdc)2448
Battery typeRack-mount external
Charger(Amp)4 (can be extended)
Others
CommunicationRS232(USB, SNMP,dry contact is optional)
DisplayLED/LCD
Working temperature(℃)0-40
Dimension(mm)(D*W*H)375*440*88(2U)
Weight(kg)7910
