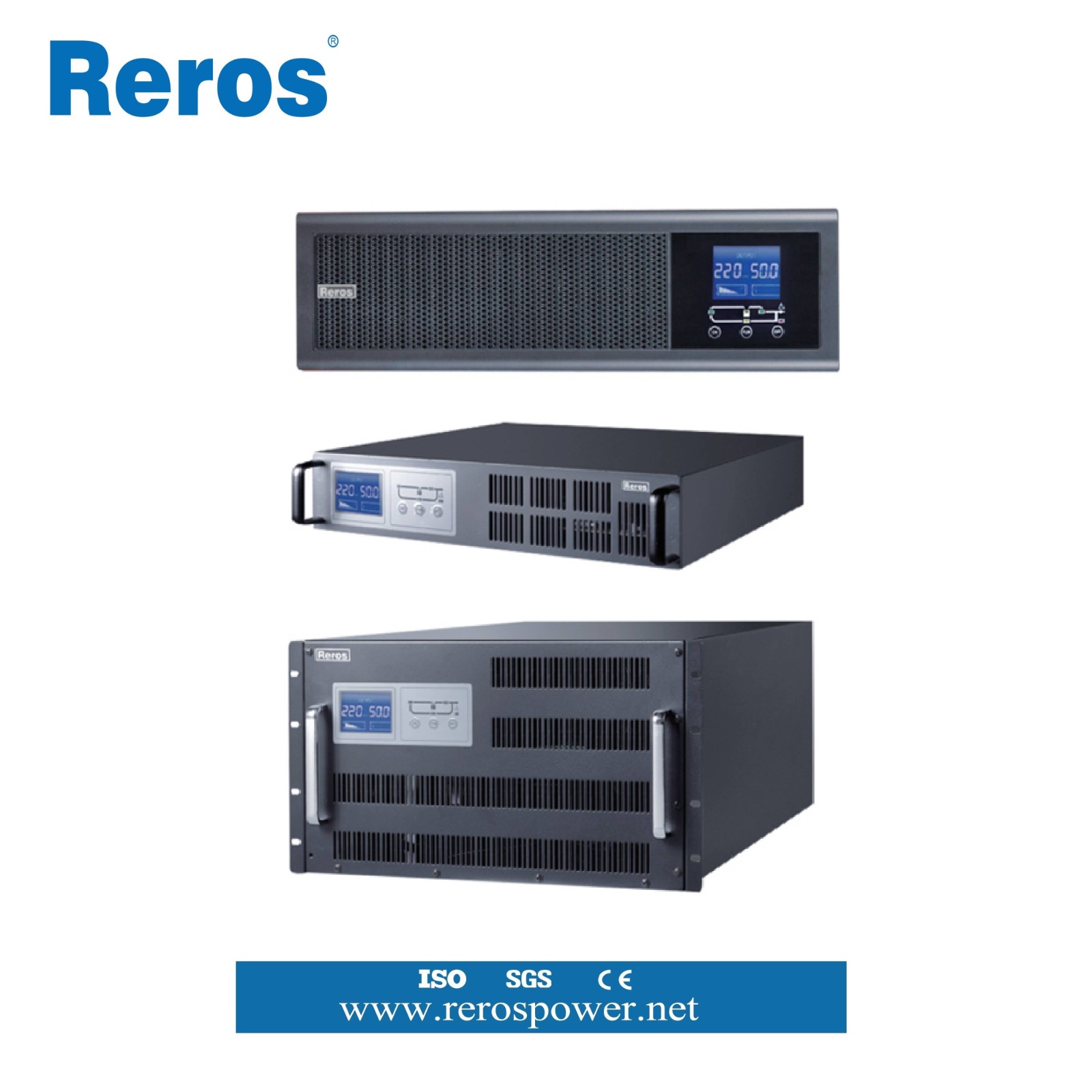

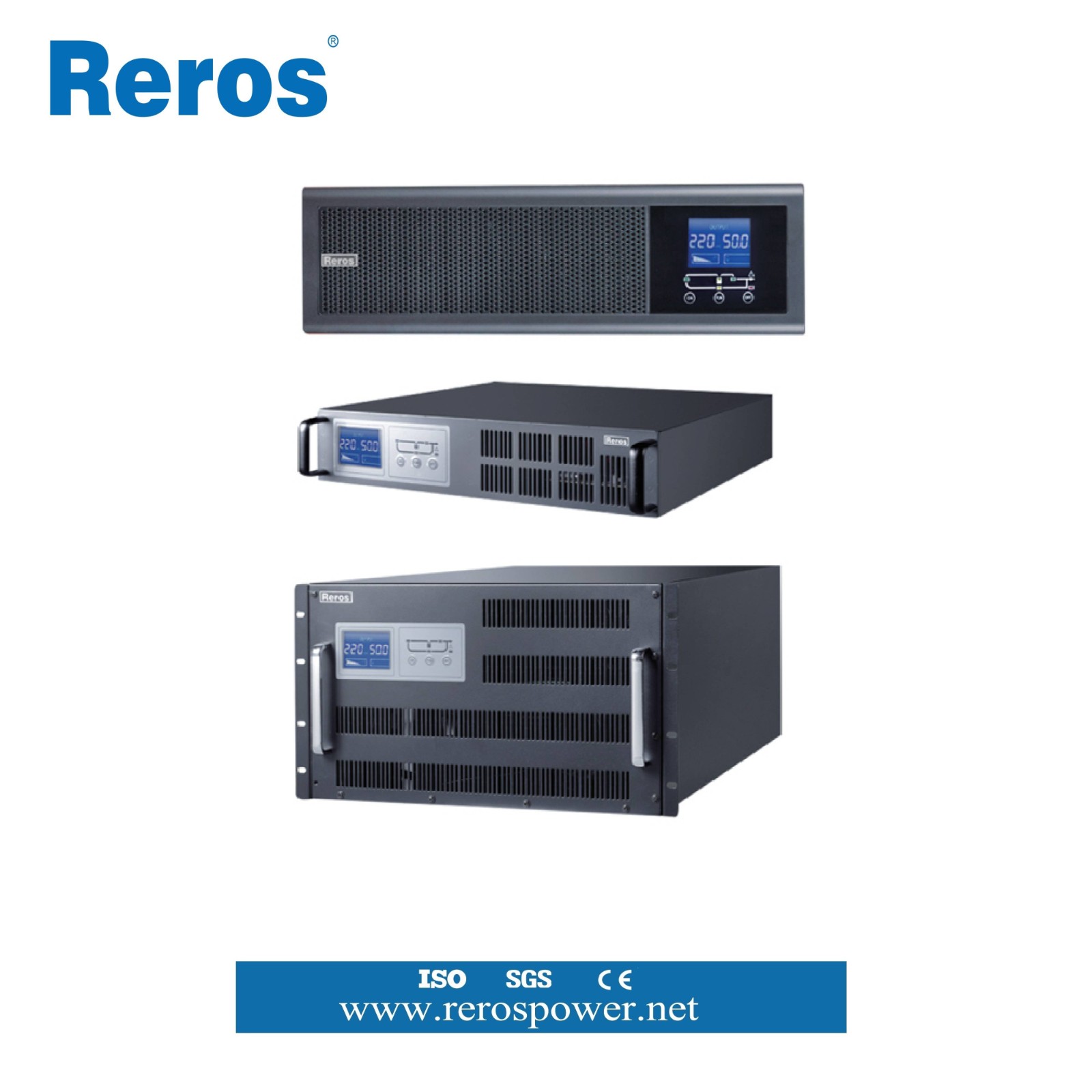

Home >> Product >> Online Transformerless UPS >> RW1-30K-E
Main feature
l CPU control technology
l Fan motor intelligent control, also can be used with a generator
l Automatically select 50Hz/60Hz input frequency mode
l Bypass voltage set by RS232 Serial port
l MTBE: ≥200K hours, MTTR: 2min
l Manual maintenance bypass switch (optional)
l Fan motor temperature control intelligent protection, battery detect automatically
l Computer remote ability
l High performance battery optimized
l Double conversion pure on-line technology, super-width AC input voltage range
l Advanced display, set bypass voltage and output voltage range by the multi-function LCD panel
l ECO function
Specification:
| Model | RW1KS/L-E | RW2KS/L-E | RW3KS/L-E | RW6KS/L-E | RW/R3W10KS/L-E | RW/R3W15K-E | RW/R3W20K-E | RW/R3W30K-E | |||||
| Capacity | 1kVA | 2kVA | 3kVA | 6kVA | 10kVA | 15kVA | 20kVA | 30kVA | |||||
| Input features | |||||||||||||
| Voltage(Vac) | 110VAC～300VAC | 110~300/266-475 | 120~300/266-475 | ||||||||||
| Phase | Single phase | Single phase/3φ4W+PE | |||||||||||
| Power Factor | ≥0.99 | ||||||||||||
| Output features | |||||||||||||
| Voltage(V) | 220±1% | ||||||||||||
| Frequency(HZ) | 50/60±0.05%（battery mode） | ||||||||||||
| Transfer Time（ms） | 0 | ||||||||||||
| Power factor | 1.0 | 0.8/0.9/1.0 | |||||||||||
| Battery voltage (Vdc) | 36 | 72 | 96 | 192(16-20pcs can be adjustable) | |||||||||
| Waveform | Sine Wave，Linear Load THD≦2%；Non-linear Load THD≦5% | ||||||||||||
| Quantity of battery (Pcs) for 12V/9AH | 2(24V) | 4(48V) | 6(72V) | 16(192V) | 16(192V)/External | External | |||||||
| Efficiency (AC mode @ full loads | ≥92% | ≥94% | |||||||||||
| Overload | 105% to 125%, transfer to bypass after 1 min; 125% to 150%, transfer to bypass after 30 seconds, with 15K-E and 20K-E transfer to bypass after 10 seconds; above 150%, transfer to bypass after 0.5 seconds; | ||||||||||||
| Crest Factor | >3:1 | ||||||||||||
| Others | |||||||||||||
| Charging Current | 1-12A adjustable on W1-3KL-E & W6-30K-E | ||||||||||||
| DC start | Yes | ||||||||||||
| Backup time | Normally 5-8 mins/Long time need to depend on demands | ||||||||||||
| Communication function | RS232/USB/dry contact | ||||||||||||
| Display | LED display UPS work status, LCD display UPS work parameters | ||||||||||||
| Noise (dB) | <50(within 1 meter) | ||||||||||||
| Alarm | Battery low-voltage, mains abnormal, overload, UPS fault, over temperature protection | ||||||||||||
| Protection | Input over-voltage protection, battery under-voltage protection, overload protection, short circuit protection, over temperature protection. | ||||||||||||
| Working temperature（℃） | 0～40 | ||||||||||||
| Humidity | 20%～90%，Non condensing | ||||||||||||
| Size(D×W×H) (mm) | 375*440*88(2U)(L)（S） | 375*440*88(2U)(L)/612*440*88(2U)(S) | 1/1:612*440*130(3U) 3/1:700*440*130(3U) | 660*440*260(6U) | |||||||||
| Weight(KG) | 14/7 | 29/9 | 33/10 | 55/19 | 57/21 | 32 | 38 | 40 | |||||
