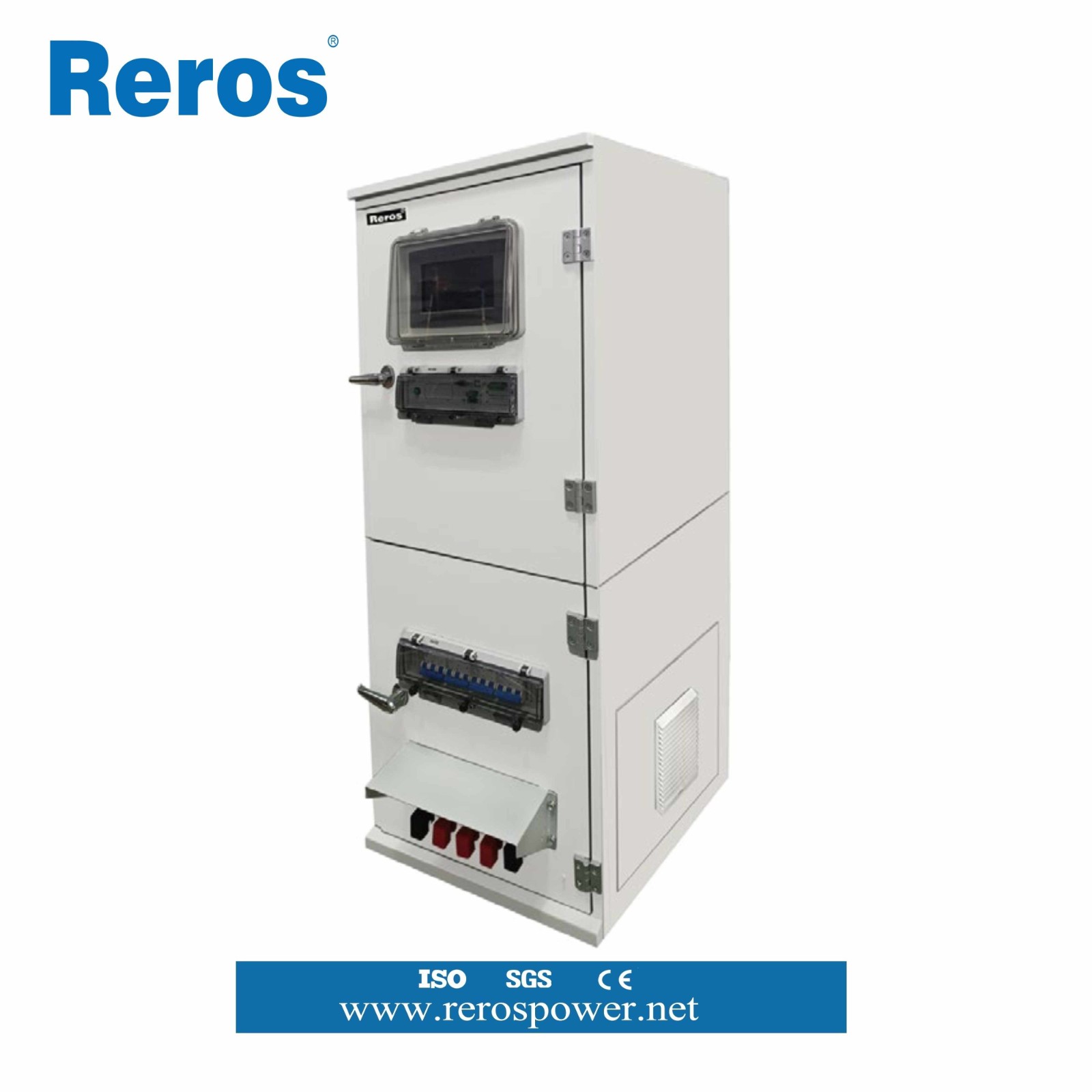

Product name:

SD 2-80K

Inquire Now None

SD 2-80KVA

Main feature

1. IGBT inverter and output isolation transformer
2. Online double conversion
3. Wide input voltage range
4. RS232 communication port
5. SNMP/RS485/dry contact(optional)
6. Fully DSP control and high reliability and performance
7. High IP level, ventilation, lighting, fire protection

Application

1. Coal mine industry
2. Tunnel and marine equipment
3. Telecom base station system

4. Highway transportation

Specification:

Model

SD
B2K

SD
B3K

SD
B6K

SD
B10K

SD
B15K

SD
B20K

SD
B30K

SD
B6K

SD
B10K

SD
B15K

SD
B20K

SD
B30K

SD
B10K

SD
B15K

SD
B20K

SD
B30K

SD
B40K

SD
B60K

SD
B80K

Capacity

2KVA

3KVA

6KVA

10KVA

15KVA

20KVA

30KVA

6KVA

10KVA

15KVA

20KVA/

30KVA

10KVA

15KVA

20KVA

30KVA

40KVA

60KVA

80KVA

Input features

Voltage (Vac)

220VAC±25%

380VAC±25%

Frequency

45-55HZ/55-65HZ

Output features

Voltage (Vac)

3Φ+N+PE

Frequency

380/400/415 Vac

Output power factor

±1%

Output frequency accuracy

AC mode: tracking bypass input in synchronous state; Battery mode:50Hz/60Hz±0.1%

Battery

DC voltage

AC mode:≥92%,ECO mode:≥98%

Protection

Overload

125% full load keep 10 minute；150% full load keep 60 seconds；

Waveform

<3%(Linear load）；<5%（Non-line load）

Size(D×W×H )mm

405*595*800

405*705*
955

505*760*
1185

405*700*955

505*760
*1185

500*800*1400

600*800*1500

700*800*1600

Weight( kg )

120

150

200

250

180

220

250

280

180

200

250

280

320

440

520

Note:

1. Because the products are continuously improved, pls contact the company or dealer to inquiry the latest specification.
