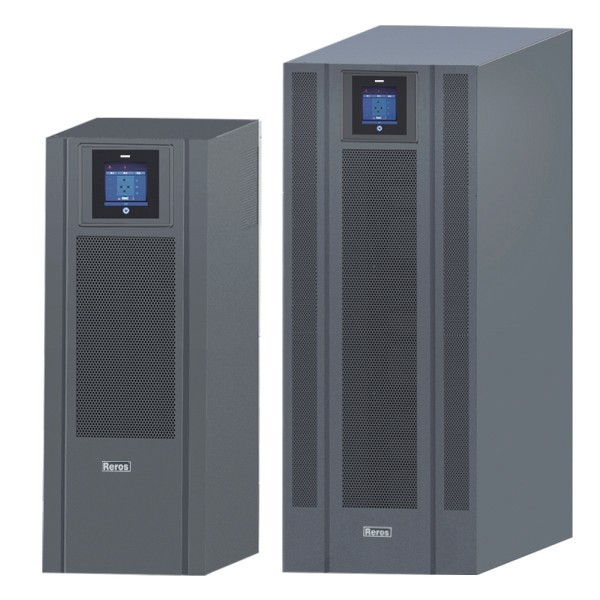

Main feature
1. Support 4 kinds of output modes of 3/1, 3/3, 1/3 and 1/1 ;
2. Intelligent human-machine interface, LCD display, standard color touch screen ;
3. UPS parallel connection can be achieved trough parallel lines ;
4. Configure input, bypass, output, and manually bypass breakers ;
5. Configure RS232, RS485, USB, SNMP card intelligent expansion slot and EPO ;
6. The charging current can be set between 1-13A ;
7. DC cold start function .
Application
1. Data center
2. Telecom system
3. Commercial facility
4. Medical/Bank system
5. Precision instrument
Specification:
| Model | 3W3G10K-T | 3W3G15K-T | 3W3G20K-T | 3W3G30K-T | 3W3G40K-T | 3W3G60K-T | 3W3G80K-T | ||||||
| Capacity | 10KVA/10KW | 15KVA/15KW | 20KVA/20KW | 30KVA/30KW | 40KVA/40KW | 60KVA/60KW | 80KVA/80KW | ||||||
| Input features | |||||||||||||
| Voltage(Vac) | 380±20% | ||||||||||||
| Frequency(HZ) | 50/60HZ | ||||||||||||
| Phase | 3 Phase 4 Wires+ Ground | ||||||||||||
| Power Factor | ≥0.99 | ||||||||||||
| Battery voltag (Vdc） | ±192 | ||||||||||||
| Battery quantity ( PCS ) | 30-40 can be adjustable | ||||||||||||
| Battery type | External | ||||||||||||
| Output features | |||||||||||||
| Power factor | 1.0 | ||||||||||||
| Voltage(Vac) | L-N:220±1% L-L:380±1% | ||||||||||||
| Frequency(HZ) | 50Hz/60Hz±0.2% | ||||||||||||
| Transfer Time（ms） | 0 | ||||||||||||
| Efficiency ( AC mode at full loads) | ≥96% | ||||||||||||
| N+X in parallel ( PCS) | 3 | ||||||||||||
| Waveform | Pure Sine Wave，Linear Load THD<3%; Non-linear Load THD<5% | ||||||||||||
| Crest Factor | >3:1 | ||||||||||||
| Others | |||||||||||||
| Communication | RS232/RS485/USB /dry contact(SNMP are optional) | ||||||||||||
| Protection | Output short circuit protection, output overload protection, over temperature protection, battery low-voltage protection, output over under-voltage protection, fan fault protection, etc | ||||||||||||
| Alarm | Battery low-voltage, mains abnormal, overload, UPS fault, over temperature protection | ||||||||||||
| Communication port | Standard：RS232, RS485, Dry contact, USB；For optional: SNMP | ||||||||||||
| Display | 4 inches touchable screen | ||||||||||||
| Working temperature | 0～55℃ | ||||||||||||
| Humidity | 0～95% (Non condensing) | ||||||||||||
| Size(W×D×H) (mm) | 283*623*723 | 380*800*825 | 380*900*925 | ||||||||||
| Weight(KG) | 32 | 35 | 36 | 45 | 45 | 100 | 102 | ||||||
Note：110VAC/208VAC input & output also can be provided under this UPS design, pls request to our sales dept.
