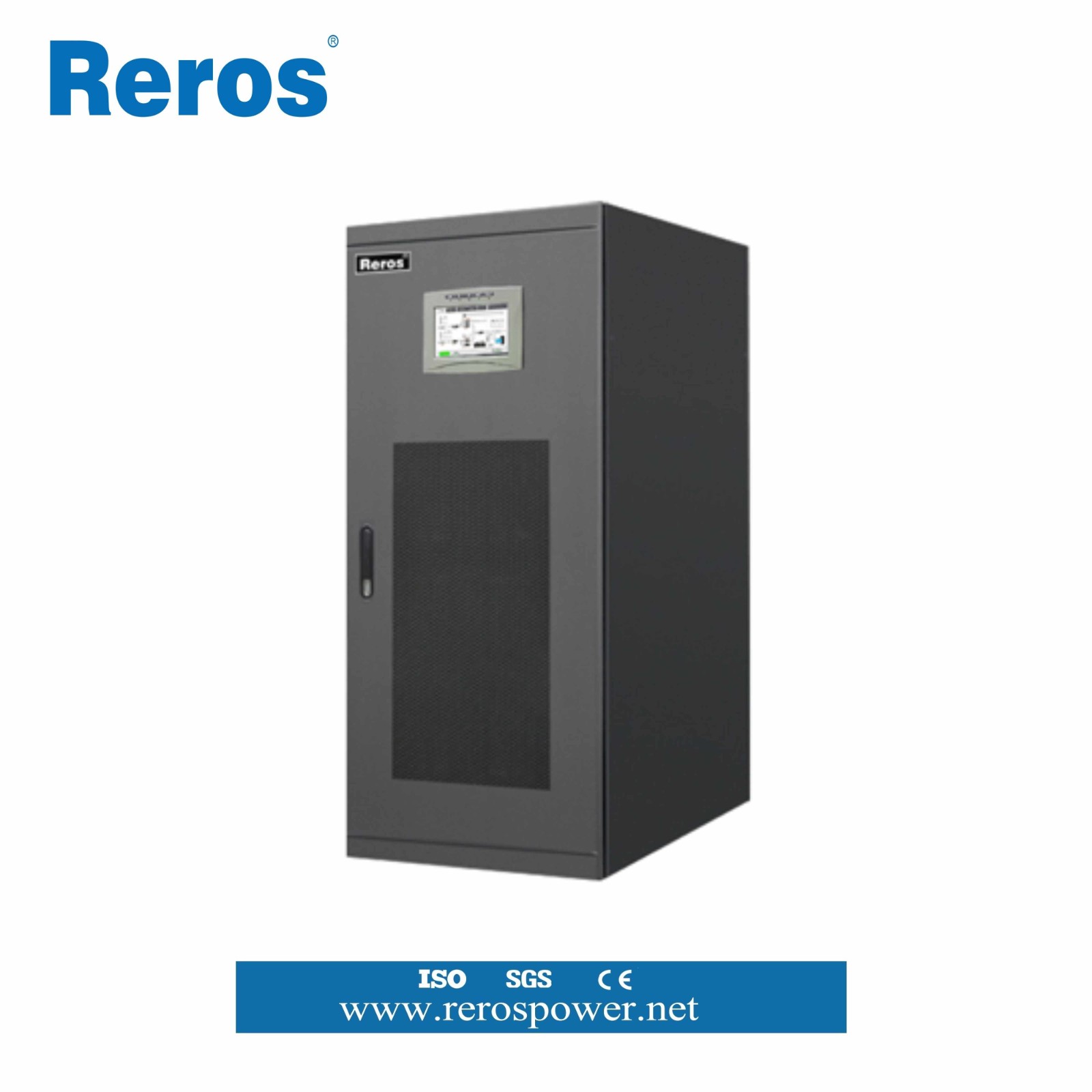

3W3IG100-600KL

Inquire Now None

Main Feature:

N+X parallel redundancy system

Intelligent fan control and redundant design

RS232/RS485/LAN/dry contact communication port

SNMP adapter(optional)

Fully DSP control and high reliablity and performance

Allow 100% unbalanced load

7 inches touchable LCD screen

Manual maintenance bypass switch

Specification:

Model	3W3IG100KL	3W3IG120KL	3W3IG160KL	3W3IG200KL	3W3IG250KL	3W3IG 300KL	3W3IG 400KL	3W3IG 500KL	3W3IG 600KL
Capacity	100KVA/80KW	120KVA/96KW	160KVA/128KW	200KVA/160KW	250KVA/200KW	300KVA/240KW	400KVA/320KW	500KVA/400KW	600KVA/480KW
Input mode	3 Phase 4 Wires+ Ground
Input Voltage (Vac)	380V/220V ±20%、400V/230V±20%、415V/240V±20%
Input Frequency(Hz)	50Hz±10%、60Hz±10%
Input PF	≥0.99
Battery voltage	±240VDC
Charge Time	10hs (2hs backup battery capacity)
Battery quantity(Pcs)	32-44 can be adjusted
UPS Power Factor	0.8
Output voltage (Vac)	380/220V、400/230V、415/240V
Output frequency (HZ)	50Hz±4%；Mains overrun or battery mode output is 50Hz±0.2% ; 60Hz±4%；Mains overrun or battery mode output is 60Hz±0.2%
Output voltage Stability	±1%（Static）；±2%（Load change from 0 ~ 100% ）
Efficiency (AC mode @ full loads)	≥94%
Output voltage recovery time	＜20ms（Load change from 0 - 100% ）
Overload	Rated load 125% ，runs 10mins
Communication function	RS232/RS485/422/ dry contact/TCP/IP Expansion cards
SMMP(optional)	Can be network monitored by SNMP adapter
Parallel function	Yes(for optional)
Alarm	Battery low-voltage, mains abnormal, overload, UPS fault, over temperature protection
Working temperature	-5℃～40℃
IP Class	IP21
Cooling	Speed controlled air cooling
Noise(dB)	≤55dB(Within 1 meter)
Structure	19 inches Standard
Monitor Management System	UP Supervisor
Display	Touchable screen LCD/LED
Dimension(W×D×H) (mm)	6008001200		6008001600		6008002000	6008002000		12008002000
Weight( kg )	200	210	260	290	410	490	590	740	810
