Product name:

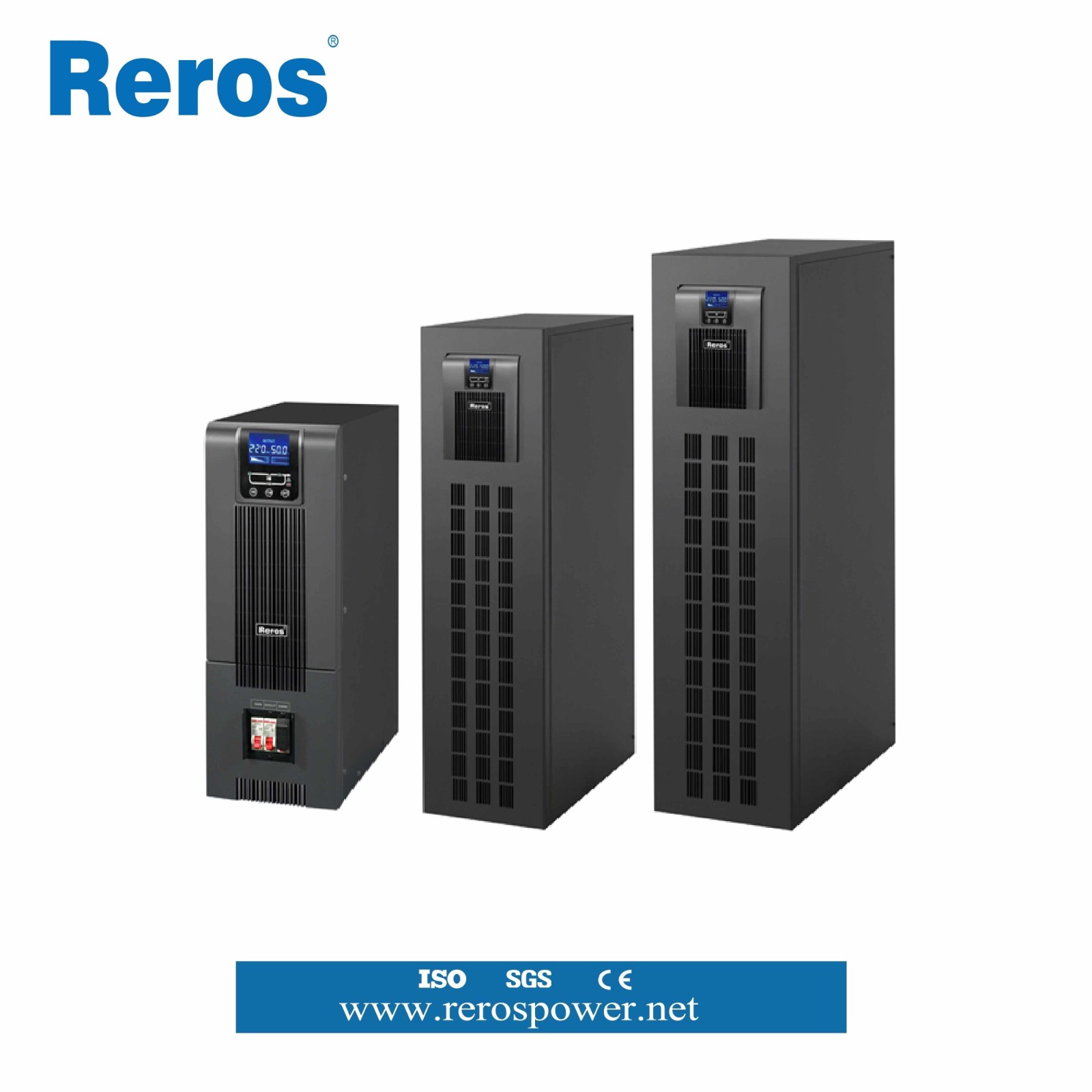

B 1-30K-II

Inquire Now None

B 1-30KVA-II

Main feature

1.IGBT inverter and output isolation transformer
2.Online double conversion
3.Wide input voltage range
4.RS232/RS485 communication port
5.SNMP/dry contact(optional)
6.High reliability and performance
7.External battery pack (optional)

Application

1.Data center
2.Industry
3.Commercial facility
4.Telecom system

5.Precision instrument

Specification:

Model	B1KS/L-II	B2KS/L-II	B3KS/L-II	B6KS/L-II	B10KS/L-II	B15K-II	B20K-II	B30K-II
Capacity	1KVA	2KVA	3KVA	6KVA	10KVA	15KVA/	20KVA	30KVA
Input features
Voltage range (Vac)	120～300
Frequency range	45～66 Automatically select synchronization range according to grid frequency
Phase Battery vo	Single phase three wires
Battery voltage	36	96	96	192(16-20PCS can be adjustable)
Battery type	2*9Ah 12V/ External	4*9Ah 12V/ External	6*9Ah 12V/ External	16*9Ah 12V/External		External
Output features
Power factor	0.8/0.9
Output voltage	220/230/240±1%
Frequency(HZ)	50/60±0.05%（battery mode）
Transfer time（ms）	0
Waveform	Sine Wave，THD<3%
Overload capacity	110%~129% full load keep 10min；130%~150% load keep 60s；
Others
Crest factor	>3:1
Backup time	Standard time is 5-8mins/ Long backup time can be extended freely
Charge recovery time	<10hours
Communication port	RS232(USB/dry contact are optional)
SNMP（optional）	Can be network monitored by SNMP adapter
Display	LED display work status and fault indicator；LCD display single phase input voltage, input frequency, single phase output voltage, load, battery voltage etc
Noise (dB)	<60(within 1 meter)
Alarm	Battery low-voltage, mains abnormal, overload, UPS fault, over temperature protection
Protection	Input over-voltage protection, battery under voltage protection, overload protection, short circuit protection, over temperature protection
Working temperature（℃）	0～40
Humidity	0～95%，Non condensing
Size(D×W×H )mm	368145349	390190498		503240786(L)/503425786(S)		502248955		5022481050
Weight( kg )	22/17	40/24	41/28	105/60	110/65	95	105	118

Note：

1、“L” is long backup UPS，“S” is standard UPS；

2、Because the products are continuously improved, please contact the company or dealer to inquiry the latest specification.
